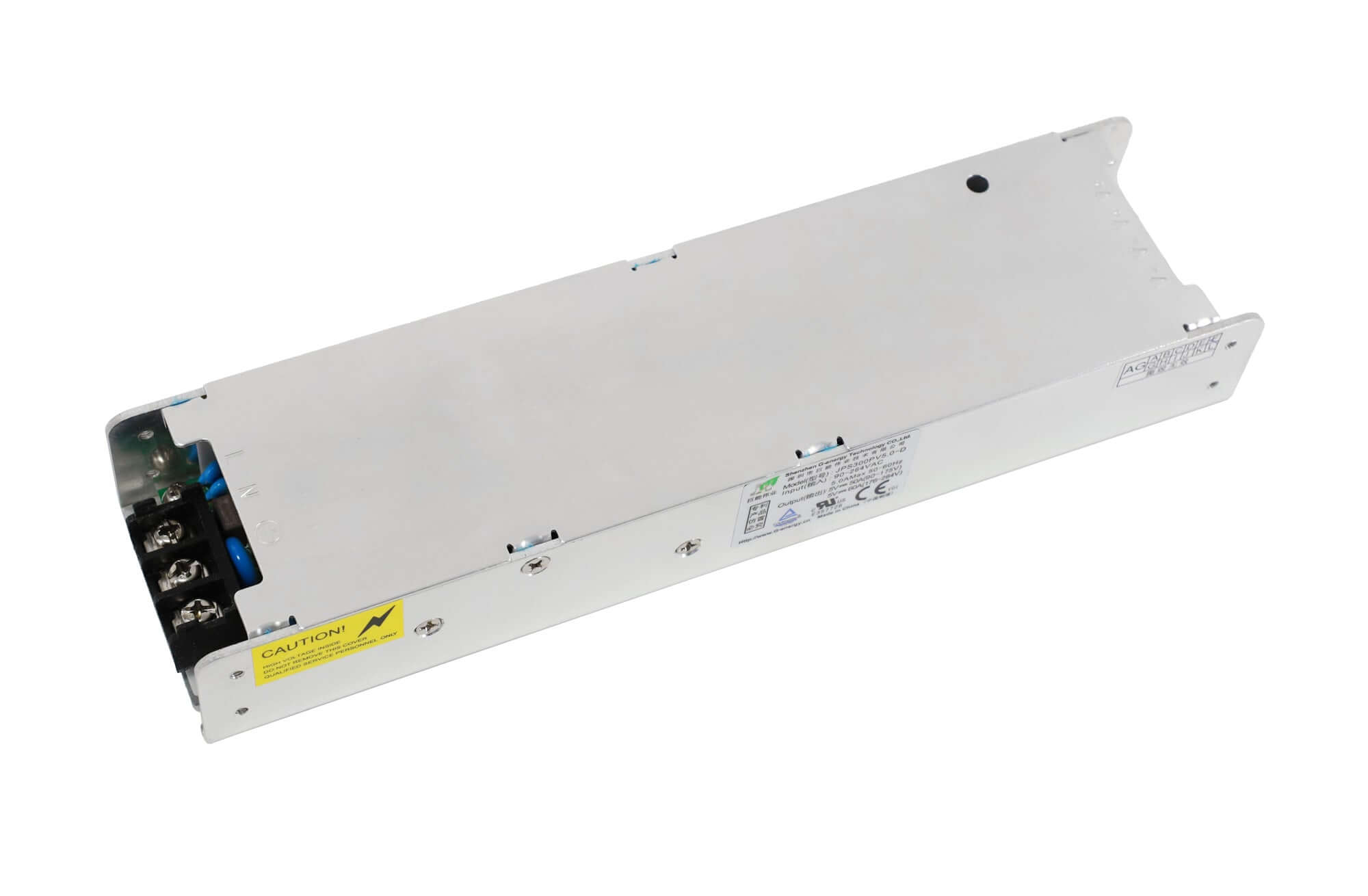

G-Energy JPS300P-D 300W LED screen Power Supply
$ 26.55
G-Energy JPS300P-D 300W LED screen Power Supply Specification：total output power (W)：300 Rated input voltage (Vac)：100-240、176-264 Output voltage (Vdc)： 5.0 Output current range (A)：0-50、0-60 Voltage regulation accuracy：±1% Ripple and Noise (mVp-p)：≤150 Working temperature: -30—60 (typical value 25) ℃ The power substrate temperature exceeds the over-temperature protection point (typical value 105C°) solved by auxiliary heat dissipation Ambient temperature: -30—60 (typical value 25) ℃ (derating is required if the maximum temperature is exceeded) Storage temperature: -40—85 (typical value 25) ℃ Relative humidity: 10—95% (non-condensing) Altitude: 0-2000 m (normal operation) Atmospheric pressure: 70—106 Kpa Heat dissipation method: natural cooling (when the power supply is working, it needs to be installed on the metal backplate to assist heat dissipation)G-Energy JPS300P-D 300W LED screen Power Supply pictures:
