Indoor Flexible LED Module: 3mm RGB Panel, 320x160mm, 5408 Dots, 800 Nits Indoor

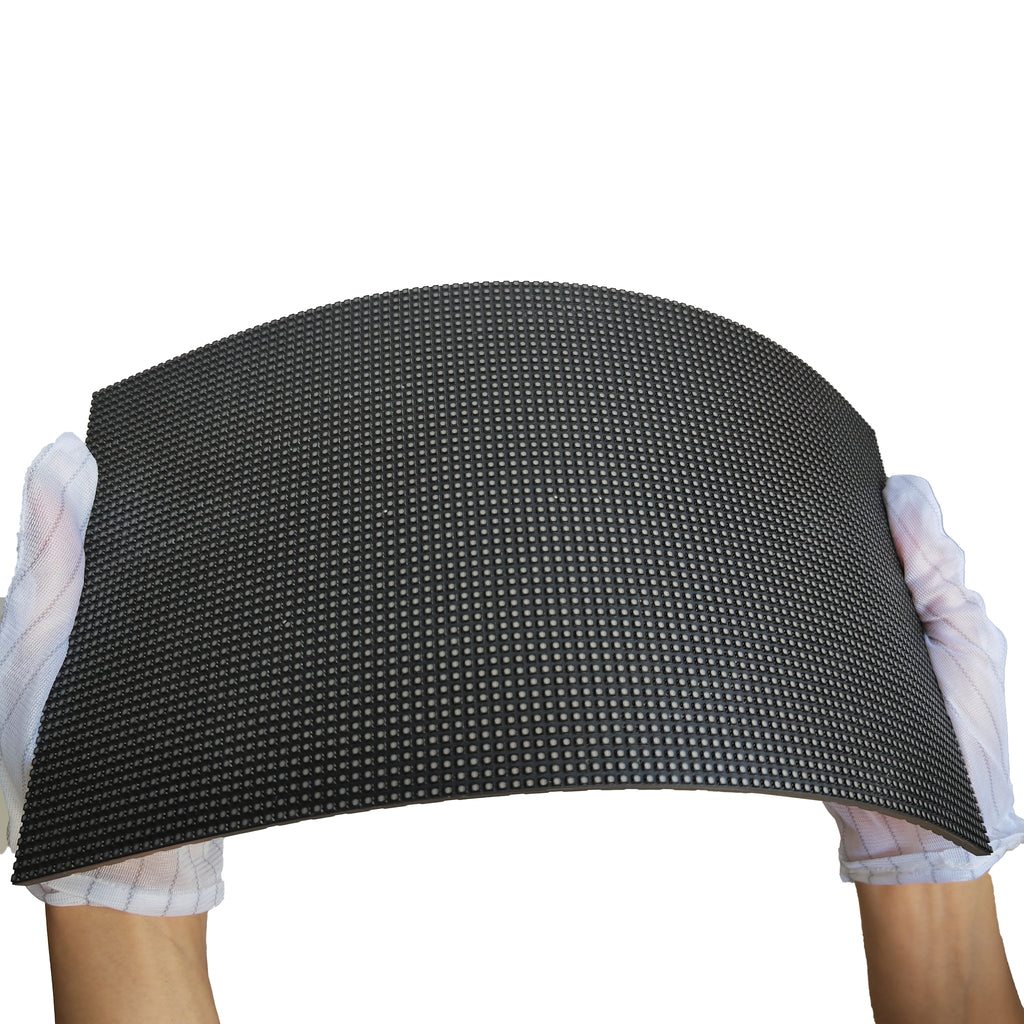

HKXR3L (P3.076) Indoor Flexible LED Display Module, 3mm Full RGB Pixel LED Display Panel Screen in 320* 160 mm with 5408 dots, 1/26 Scan, 800 Nits LED Tile for Indoor DisplayItemsHKXR3LTechnical ParametersPixel Configuration1R1G1B Full ColorEncapsulationSMD1515Pixel Density (dots/m2)105625Module Size (mm)320x160x8.6 (Width x Height x Thickness)Moduel Resolution (dots)104×52Scan Mode1/26Standard Dirver IC (Optional)Dual cacheRefresh Rate (Hz)3840Frame Rate (Hz)60Gray Scale (bit)12 AdjustableSplicing diameter/mm407Curved arc≥135°Data Interface TypeHUB75（no cascading interface）Moduel Barcket MaterialsSilicon Rubber Soft BracketModule Weight (Kg/pcs)0.29Cabinet SizeCan be ODM freely upon module sizesCabient MaterialPowder Coated Sheet Metal Steel CabinetCabinet Eveness (mm)≤ 0.5IP Protection GradeIP20Assembly / Maintanance TypeFront & Rear Assembly / MaintenancePhotoelectronic Special FeaturesBrightness (nits)700Color Temperature (K)10,000—12,000 AdjustableBrightness Eveness≥97%Horizontal / Vertical Veiw Angle≥150°/≥120°Contrast Ratio≥6000:1Electrical ParametersModule Input Voltage DC（V）5Moduel Maximum Current DC（A）4.2Module Maximum Power Consumption（w/pcs）21Working Input Voltage AC（V）110—220Peak Power Consumption（w/m2）410Average Power Consumption（w/m2）118Application ParametersTypical Life Span（hrs）100,000Working Temperature（℃）-20—40Storage Temperaure（℃）-20—40Working Humidity（RH）20—75% (No Condensation)Storage Humidity（RH）20—75% (No Condensation)
