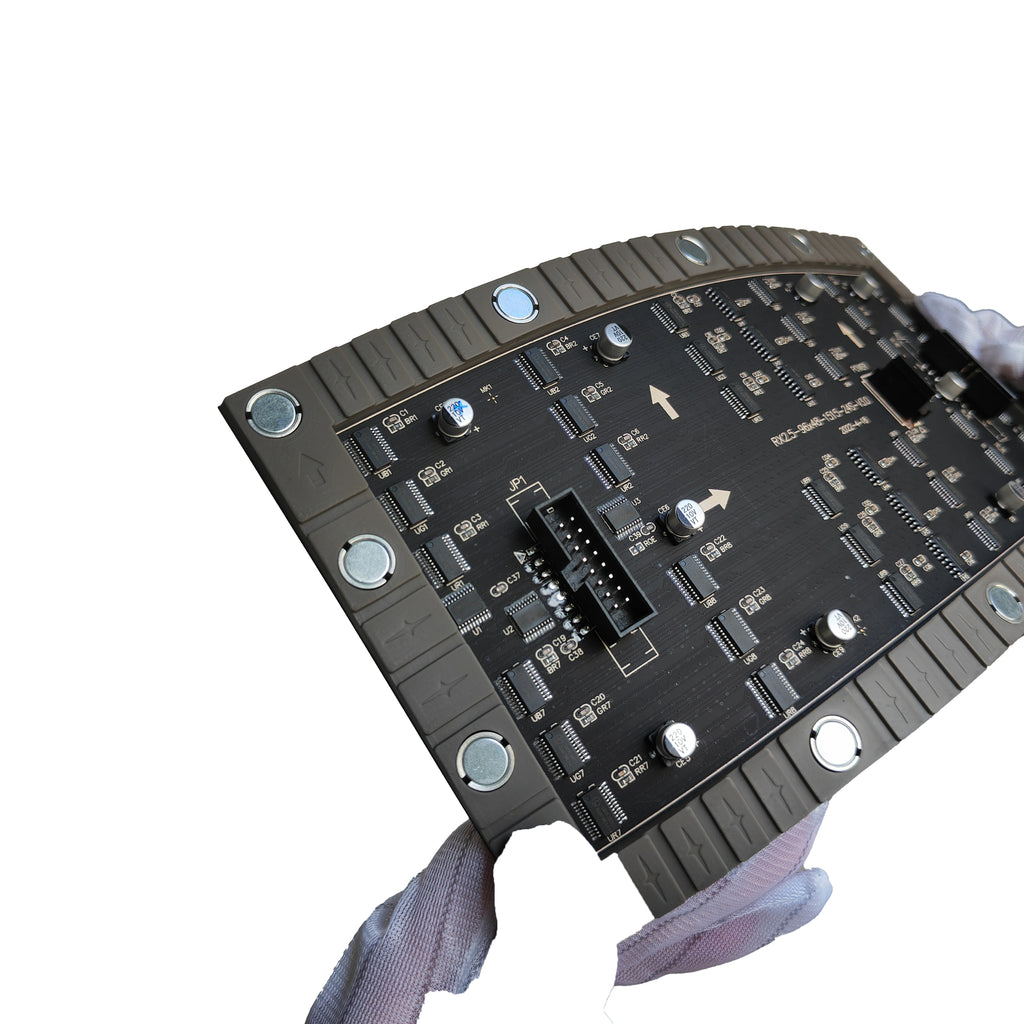

Indoor Flexible LED Module: 2.5mm RGB Panel, 240x120mm, 4608 Dots, 600 Nits Indoor

HKXR2.5S (P2.5) Indoor Flexible LED Display Module, 2.5mm Full RGB Pixel LED Display Panel Screen in 240* 120 mm with 4608 dots, 1/30 Scan, 600 Nits LED Tile for Indoor DisplayIncluded 1 * Data Cable 1 * P2.5 240*120mm RGB full color LED display moduleItemsHKXR2.5STechnical ParametersPixel Configuration1R1G1B Full ColorEncapsulationSMD1515Pixel Density (dots/m2)160000Module Size (mm)240x120x8.6 (Width x Height x Thickness)Moduel Resolution (dots)96×48Scan Mode1/24Standard Dirver IC (Optional)PWM or Dual cacheRefresh Rate (Hz)1920-3840Frame Rate (Hz)60Gray Scale (bit)12 AdjustableSplicing diameter/mm306Curved arc≥135°Data Interface TypeHUB75（1 in 1 out）Moduel Barcket MaterialsSilicon Rubber Soft BracketModule Weight (Kg/pcs)0.19Cabinet SizeCan be ODM freely upon module sizesCabient MaterialPowder Coated Sheet Metal Steel CabinetCabinet Eveness (mm)≤ 0.5IP Protection GradeIP20Assembly / Maintanance TypeFront & Rear Assembly / MaintenancePhotoelectronic Special FeaturesBrightness (nits)600-800Color Temperature (K)10,000—12,000 AdjustableBrightness Eveness≥97%Horizontal / Vertical Veiw Angle≥150°/≥120°Contrast Ratio≥’5000:1Electrical ParametersModule Input Voltage DC（V）5Moduel Maximum Current DC（A）2.6Module Maximum Power Consumption（w/pcs）13Working Input Voltage AC（V）110—220Peak Power Consumption（w/m2）460Average Power Consumption（w/m2）130Application ParametersTypical Life Span（hrs）100,000Working Temperature（℃）-10—40Storage Temperaure（℃）-20—40Working Humidity（RH）20—75% (No Condensation)Storage Humidity（RH）20—70% (No Condensation)
