ECU Modules Repair Helper Components & PINOUT

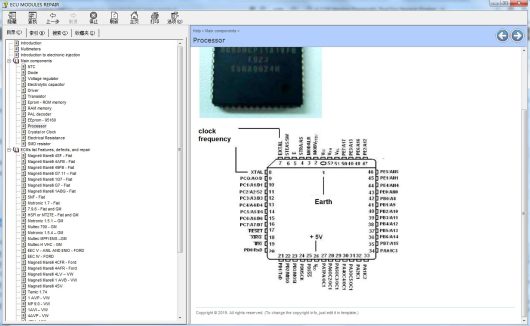

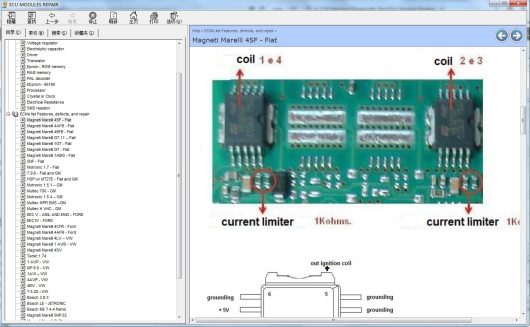

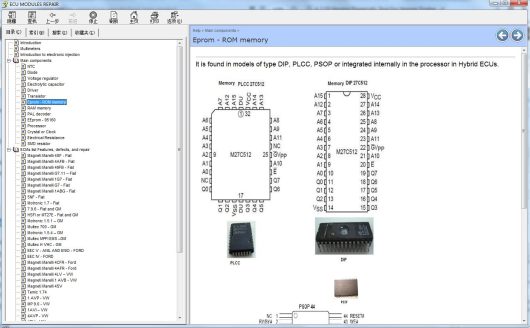

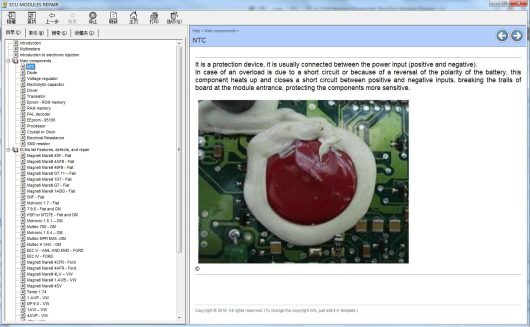

Description ECU Modules Repair Helper Components & PINOUT–Over time and the need to improve everything, the number of electronic components in automobiles comes progressively increasing in order to improve from fuel efficiency to driver comfort.As a result, more and more mechanical parts are transformed into electronic components. Today the vast majority of automobiles use the electronic injection and are constantly increasing as well as the need for qualified technicians to ensure its smooth operation.Therefore, investing in material and knowledge is no longer a matter of staying ahead of the competition, it’s almost an obligation.Next, you will learn more about injection modules electronics: the main characteristics, identify the main components, their functions, the most defects common, and more. ECU Modules Repair Helper Features: Size:52MB Languages:English OS Requires:Win7,Win8,Win10 and Win11 Main Components: NTC Diode Voltage regulator Electrolytic capacitor Driver Transistor Eprom – ROM memory RAM memory PAL decoder EEprom- 95160 Processor Crystal or Clock Electrical Resistance SMD resistor ECMs List Features,defects and repair Magneti Marlli 4SF – Fiat Magneti Marelli 4AFB – Fiat Magneti Marelli 49FB – Fiat Magneti Marlli G7.11- Fiat Magneti Marelli 1G7 – Fiat Magneti Marlli G7 – Fiat Magneti Marelli 1ABG – Fiat 5NF – Fiat . Motronic 1.7 – Fiat 7.9.6 – Fiat and GM HSFI or MT27E – Fiat and GM Motronic 1.5.1- GM Mutec 700- GM Motronic 1.5.4- GM Multec MPFIEMS -GM Multec H VHC – GM EEC V – ANIL AND ENIO – FORD EEC N- FORD Magneti Marelli 4CFR- Ford Magneti Mareli 4AFR – Ford Magneti Marelli 4LV- WW Magneti Mareli 1 AVB – ww Magneti Marelli 4SV Temic 1.74 1AVP-WW MP 9.0- ww 1AVI- Ww 4AVP – Ww 4BV – ww 7.5.20 -WW Bosch 3.8.3 Bosch LE – JETRONIC Bosch ME 7.4.4 Petrol Magneti Mareli 5NP 02 Magneti Mrlli6LP1 Magneti Marelli 6LPb Magneti Marlli 5NP 01 Bosch MP7.2 Siemens Sirius 3134 Siemens – Sirius 32. Mercedes Class A 160 and 190 – VDO MSM Conclusion
